Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear

  • Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear
  • Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear
  • Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear
  • Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear
  • Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear
Lugar de origem China
Marca Standard
Certificação standard
Número do modelo 100*200/125*250/100*250/100*300/100*200/100*400
Quantidade de ordem mínima 1pcs
Preço Negociável
Detalhes da embalagem Caixa de cartão
Tempo de entrega 5 dias de trabalho
Termos de pagamento Western Union, MoneyGram, T/T
Habilidade da fonte 100PCS POR A SEMANA

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
diâmetro do cilindro 50-100 Curso 150-400
Condição novo Aplicação usado na planta de dosagem
Cabeça Orelha única e orelha dupla Materiais De aço inoxidável
Série Série do SC Estrutura Pneumático
Material do corpo Alumínio Líquido de funcionamento Ar
Destacar

Stainless steel Batching Plant Spare Parts

,

SC Series Batching Plant Spare Parts

,

Single Ear Pneumatic Air Cylinder
Deixe um recado
Descrição de produto

Batching Plant Pneumatic Air Cylinder/Pneumatic Air Cylinder With Single Ear/SC Series Air Cylinder



SC Pneumatic Cylinder Airtac Standard double acting air cylinder with New model Dustproof



Bore(mm) 32 40 50 63 80 100 125 160 200
Action type Double ear/single ear
Working Medium Air
Pressure Range 1.0~9.0Kgf/cm²
Ensured Pressure Resistance 13.5Kgf/cm²
Temperature Range -5~70℃
Speed Range 30~800mm/s
Buffer Type Adjustable Buffer
Buffer Stroke 150-400
Joint Pipe Bore PT1/8 PT1/4 PT3/8 PT1/2 PT3/4

PT1/2





Batching Plant Pneumatic Air Cylinder regular size as below :

S.NO. Cylinder bore dia Stroke With Head
50*150S 50 150 SINGLE EAR/DOUBLE EAR
63*100S 63 100 SINGLE EAR AND DOUBLE EAR
63*150S 63 150 SINGLE EAR AND DOUBLE EAR
63*200S 63 200 SINGLE EAR AND DOUBLE EAR
63*250S 63 250 SINGLE EAR AND DOUBLE EAR
63*300S 63 300 SINGLE EAR AND DOUBLE EAR
63*350S 63 350 SINGLE EAR AND DOUBLE EAR
80*250S 80 250 SINGLE EAR AND DOUBLE EAR
80*300S 80 300 SINGLE EAR AND DOUBLE EAR
80*350S 80 350 SINGLE EAR AND DOUBLE EAR
80*400S 80 400 SINGLE EAR AND DOUBLE EAR
100*200S 100 200 SINGLE EAR AND DOUBLE EAR
100*300S 100 300 SINGLE EAR AND DOUBLE EAR
100*450S 100 400 SINGLE EAR AND DOUBLE EAR

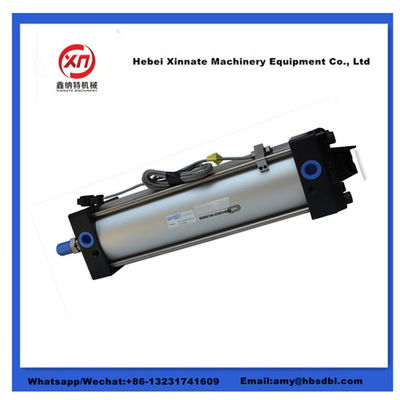

SC series Batching Plant Pneumatic Air Cylinder, shaft outside

Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear 0

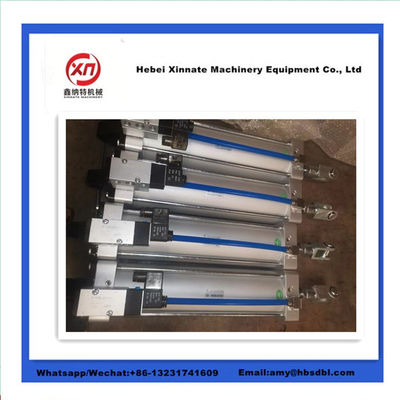

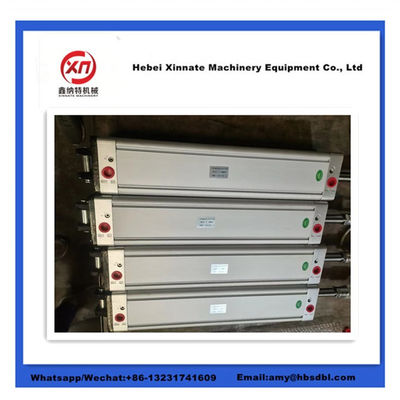

SC series Batching Plant Pneumatic Air Cylinder, shaft inside, popular in Saudi Arbia , Dubai and other middle east country

Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear 1

Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear 2

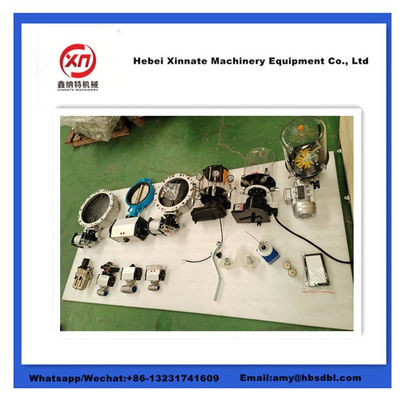

Other batching plant accessories at stock: solenoid butterfly valve +cylinder, electropneumatic actuator , VCP pressure relife valves , splined hanger bearing shaft and so on .

Stainless Steel Batching Plant Spare Parts SC Series Pneumatic Air Cylinder With Single Ear 3
